Description

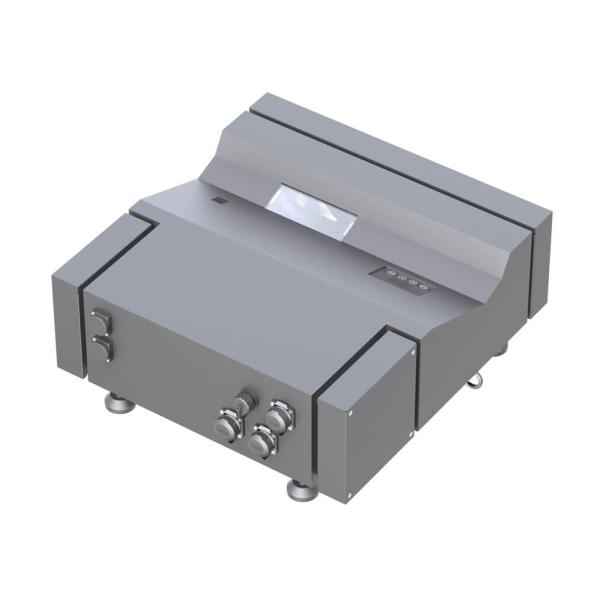

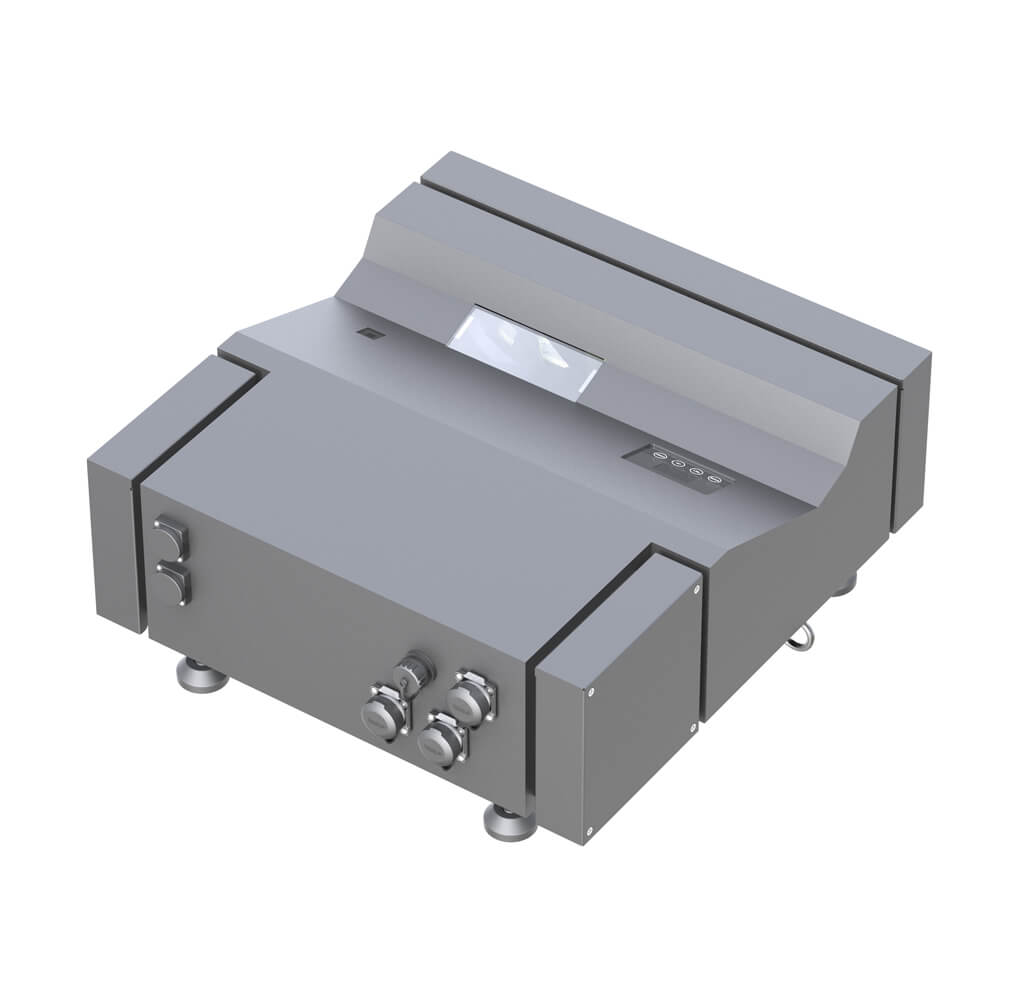

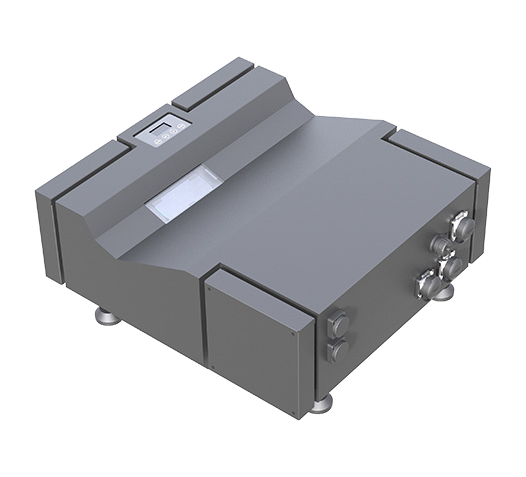

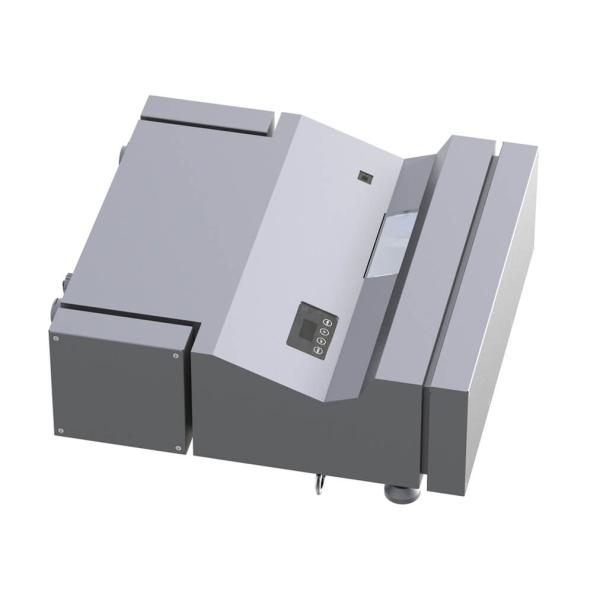

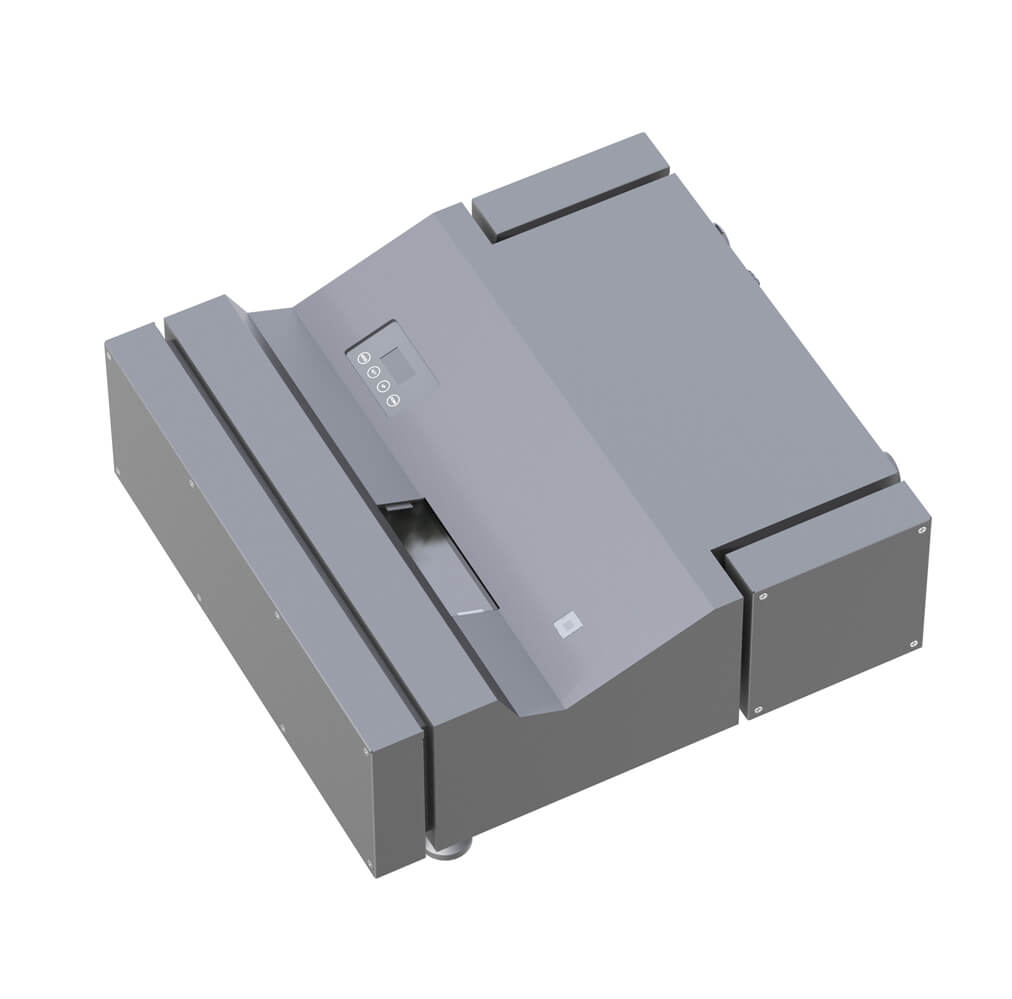

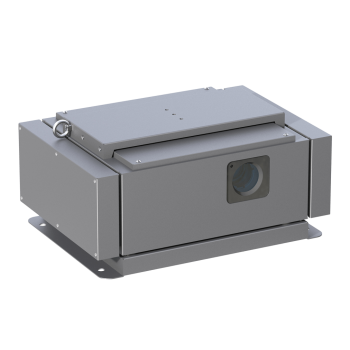

Innovative 1920 x 1080 3D video mapping projector ideal for special applications. It generates an advanced laser projection of 3000LM. color control technology ensures color reproduction and definition of images. It has a better stereoscopic sense and good image sharpness, image correction system to go unnoticed in the installation. Tremendously attractive for its extraordinary versatility and resistance to outdoor IP54, DMX protocols, RDM, HDMI, or via function buttons. You can connect external infrared and radar sensors to interact with the person, interactive displays. It is ideal for the cultural tourism market, theme parks, shopping malls, night view of a distinctive city, theme restaurants, museums, etc.
| Optics | Brightness (Lumen) | 3000lm |
| Contrast ratio (W/B) | 20000: 1 | |
| Projection ratio | 0.233 | |
| Brightness uniformity | >90% | |
| Color temperature | 8000K±500K | |
| Color gamut | NTSC 115% | |
| Light source | Light type | Laser |
| Lifetime (hours) | 20000h | |
| Software facility | Channel | 4 CH |
| Software updated type | USB, RDM DMX512 | |
| Data protocol | DMX 512, RDM, HDMI, Touch Button | |
| Hardware facility | Display function | OLED |
| Manual button setting function | Touch Button | |
| DMX input/output | Waterproof connector | |
| Power input/output | Waterproof connector | |
| Specifications | Input voltage range | AC100-240V |
| Input frequency range | 50~60Hz | |
| Power | 300W | |
| Cooling system | Type | Natural convection cooling + fan cooling |
| Temperature protection | DMD, laser temperature protection | |
| Housing | IP grade | IP54 |
| Certification | Requirement | 3C, CE |
| Installation | Operation location | Any location around the operation and within the remote range |
| Suspension system | Base | |
| Safety rope | Yes | |
| Environment | Working temperature | – 10 ~40ºC |
| Working humidity | 0%~90% non-condensing | |
| Storage temperature | – 20~60ºC | |
| Storage humidity | 0%~90% non-condensing | |
| Other special function | Standard color | Black / Cement grey |
| Keystone correction | Vertical ±40° | |
| Projection type | Front Projection-Desktop (forward or back ), Lifting-projection (forward or back ) | |
| Input resolution | Under WUXGA@60Hz | |
| Length-width ratio | 4:3, 16:9, 16:10, Eigen, padding, etc Min 5 types | |
| Built-in test chart | Min 5 types | |
| Screen parameters | Brightness, contrast ratio, hue, gmma, color temperature | |
| Color parameters | 7 basic colors for adjustment | |
| Default mode | Standard, demo, picture, video, user etc | |
| Resolution | 1920×1080 dpi | |
| 3D function | DLP link | |
| Direction adjustment | Normal, Horizontal, Vertical | |
| Dimension | 487x440x190 mm | |
| N.W. | 17 Kg | |
| Zooming | DMX Focus | |
| Auto on | Yes, need to set opening the function |
