Description

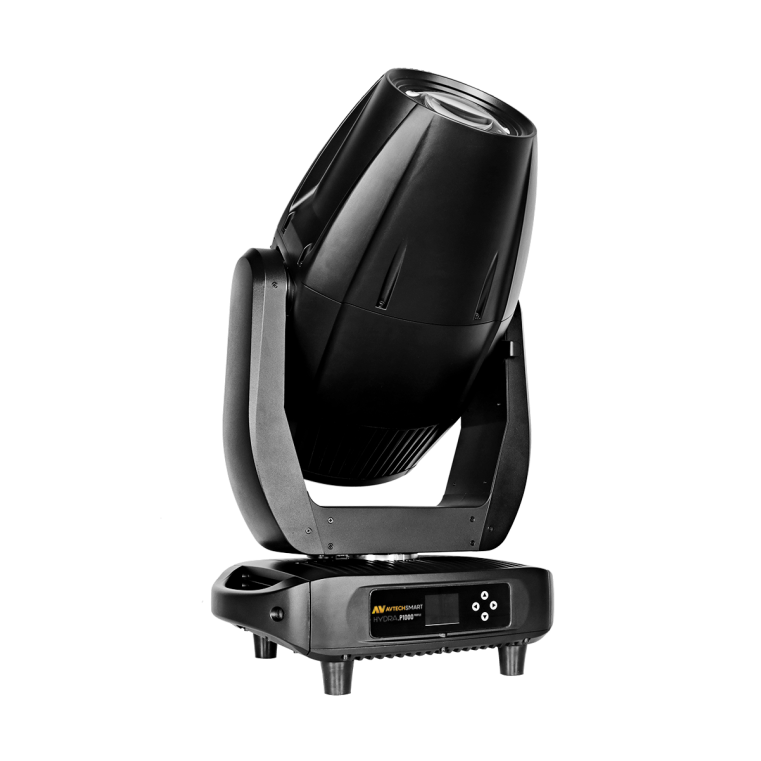

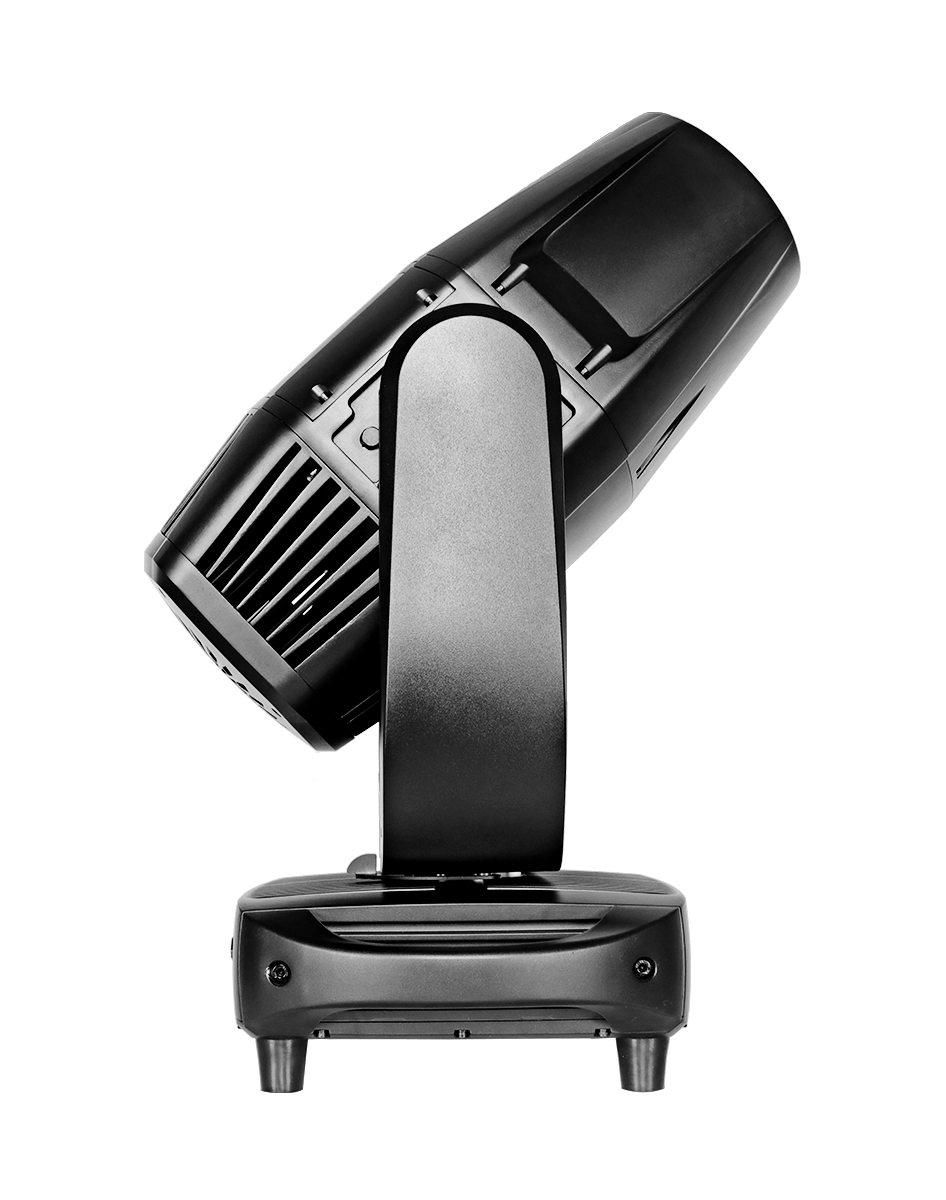

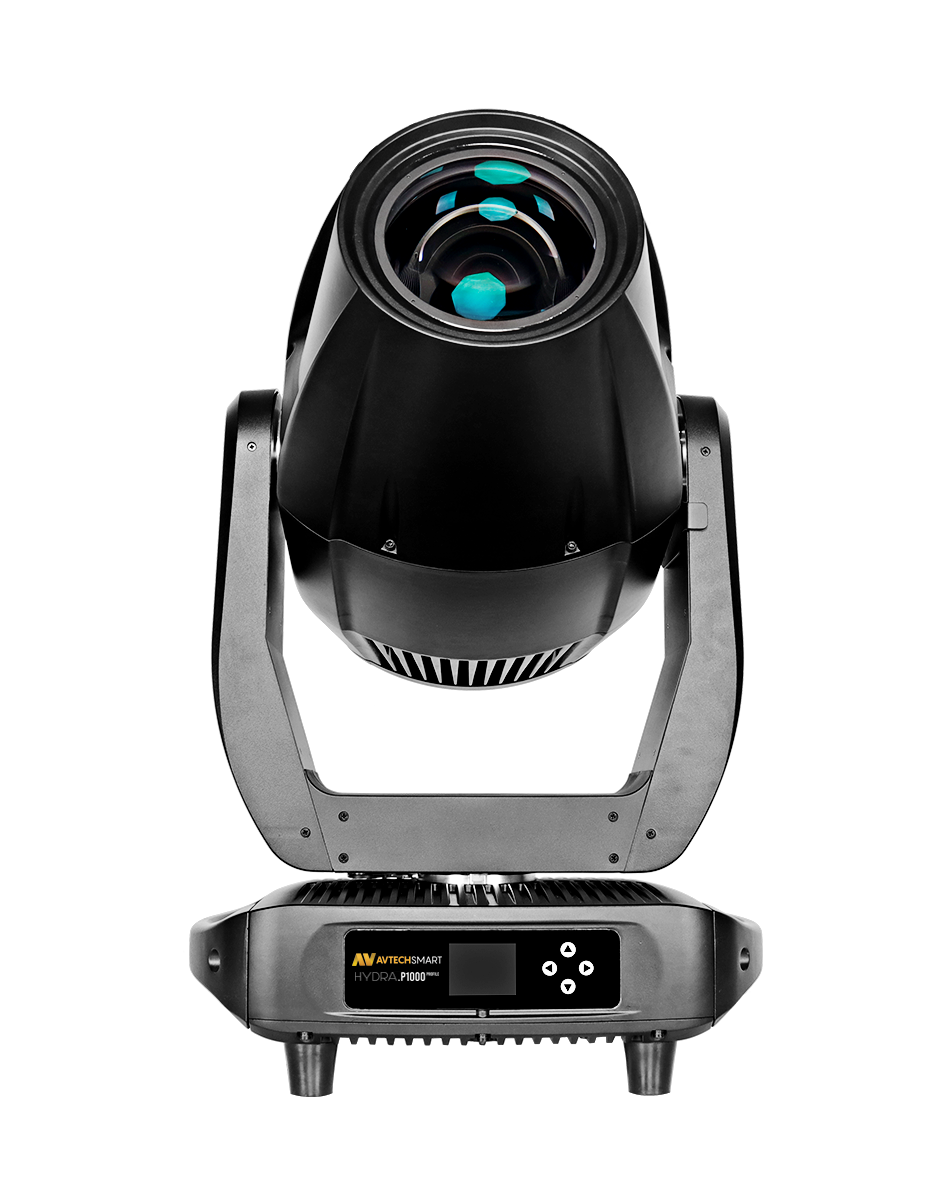

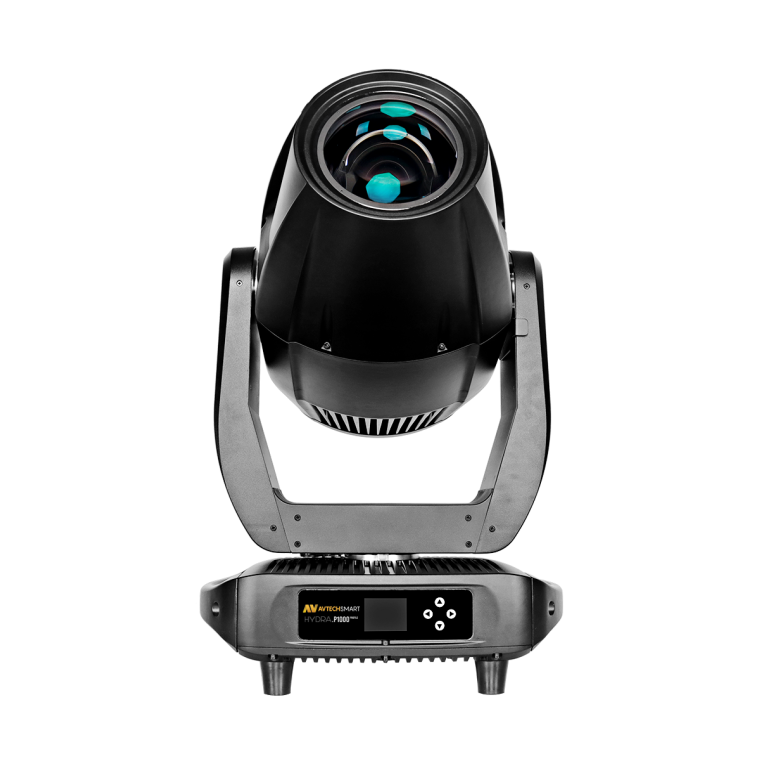

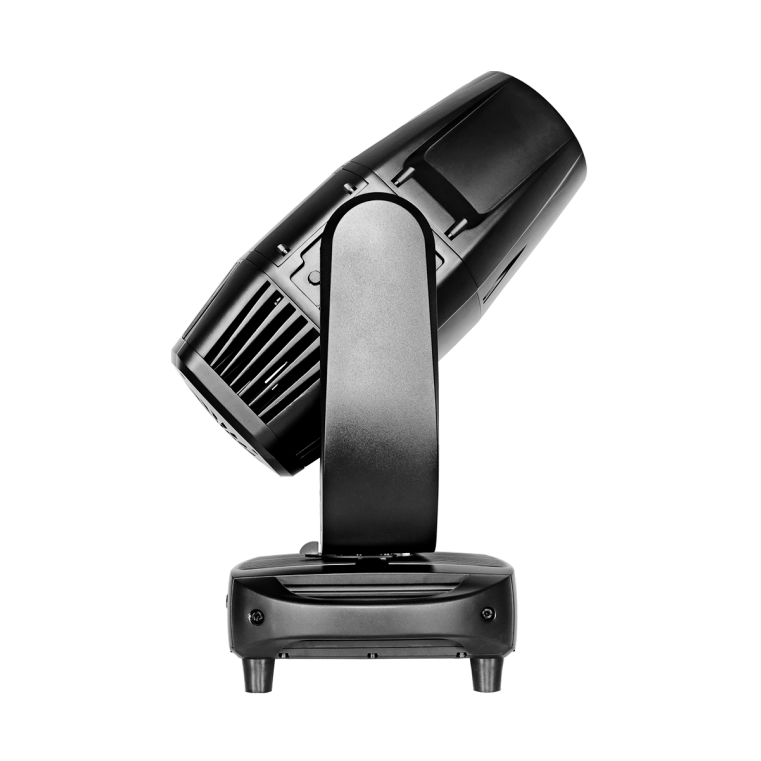

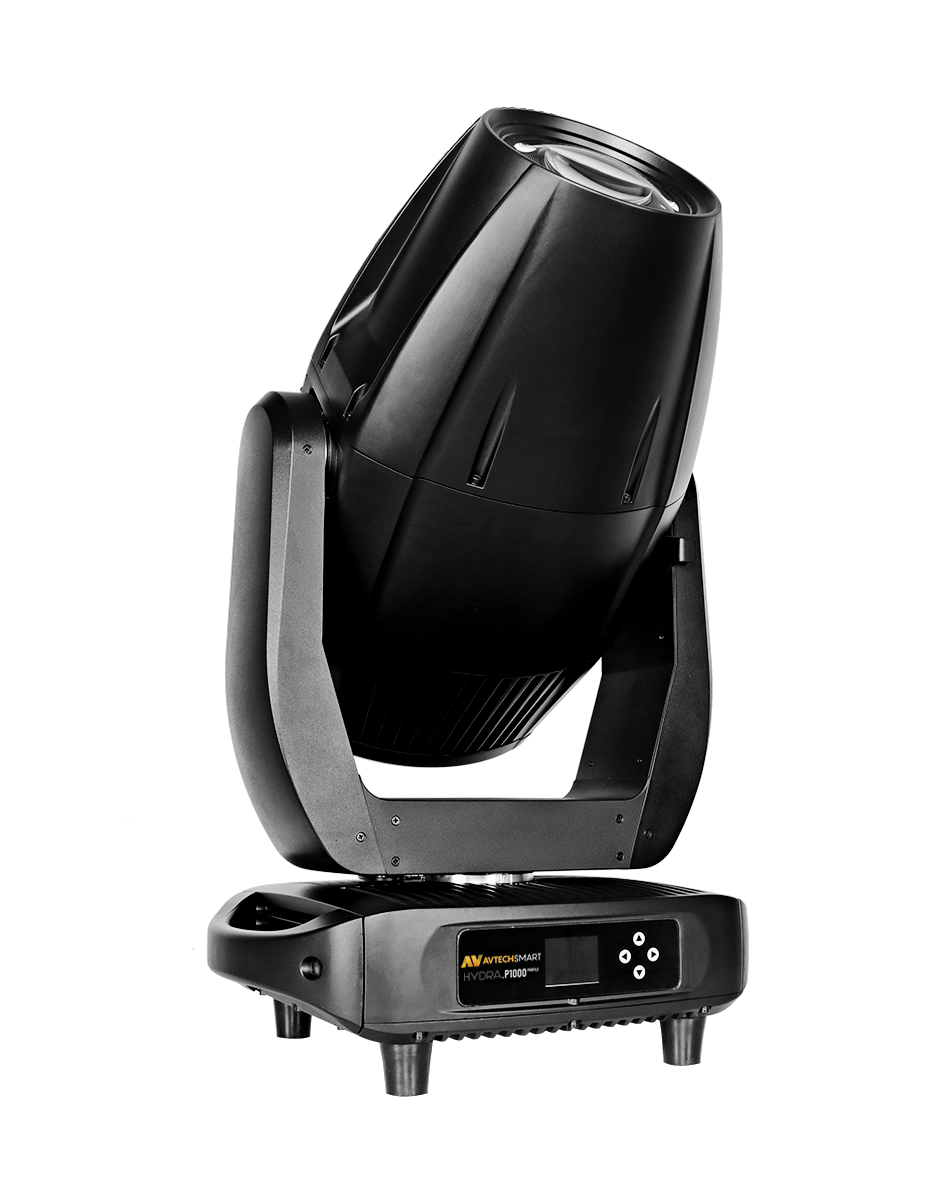

HYDRA.P1000 PROFILE is a high power LED moving spot + profile, with the super efficient optic system, 1:7 times zoom 7-50°, the Max. output is 71000lx @ 5m;It is a kind of final version stage light with high speed, accurate and efficient motor can provide not only large pan angle and tilt angles but also with smooth and high speed. HYDRA.P1000 PROFILE has image-cutting system can cut out any polygon, and with zoom, focus, prism, color wheel, CMY, rotation gobo wheel, iris, frost can supply high-quality beam colors and gobos. Equipped with animation wheel which can create dynamic water and dynamic fire effect. HYDRA.P1000 PROFILE is design for the cultural center, function hall, banquet hall, and rental performance market.
Optical system
- Light source: 1000W module
- Angle: 7-50°
Electrical Specs
- Voltage: AC100-240V, 50/60Hz
- Power: 1300W
- Drive Current: 4A
- Power Connection: Anti-loose power socket in

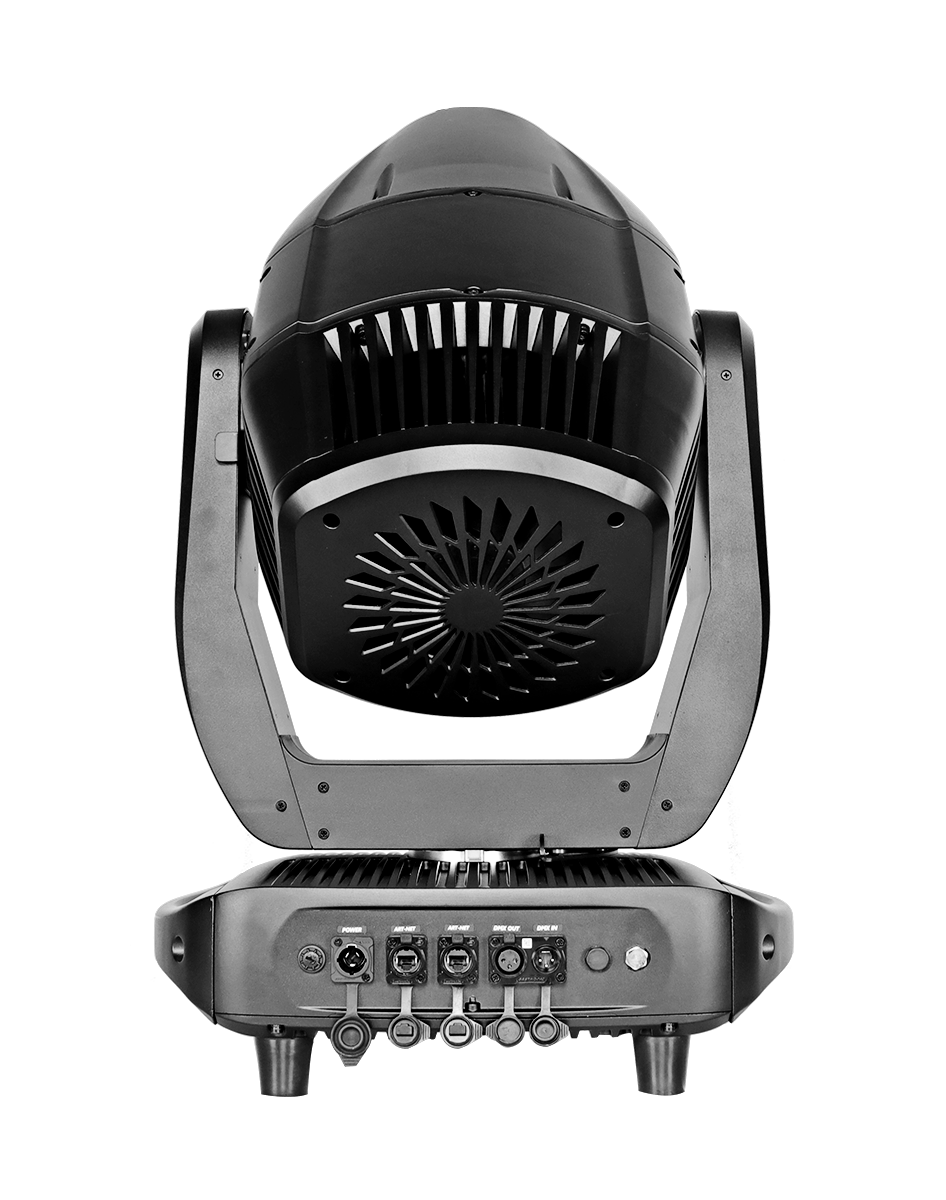

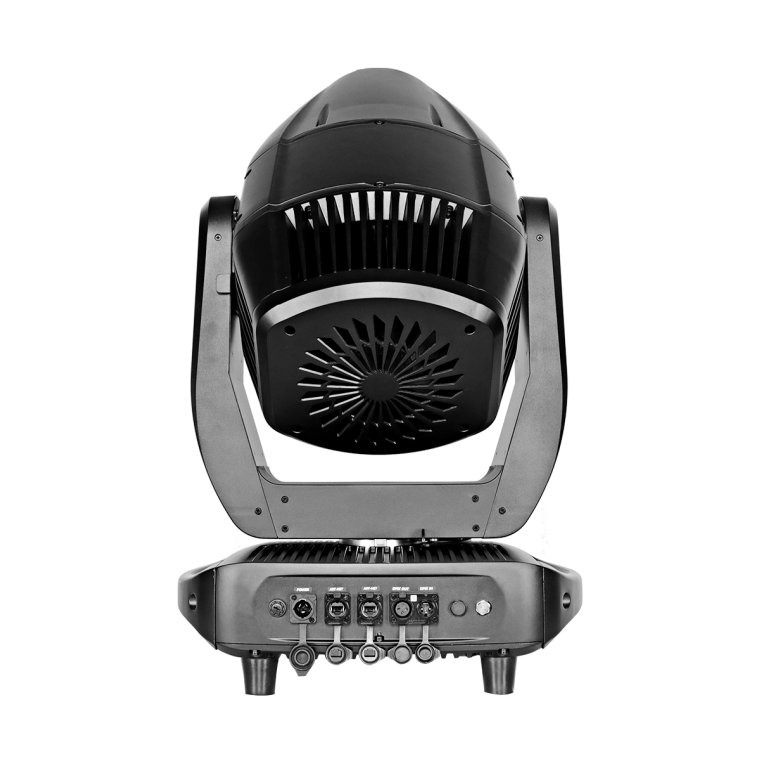

- Signal socker: 3pin / 5pin in and out, RJ45 in and out
Control System
- Pan/Tilt rotation: 540° /270°(8-16bit)
- Dimmer: 0-100%16Bit
- Cooling: Forced Convection
- Control: DMX512, ROM, ARTNET, SACN, WEB server,
- W-DMX (optional), Web Server
- Display: On board Control, Custom Mode,0-25Hz Strobe
- Con Personality: BASIC/29CHS, STANDARD/38CHS, Extend/43CHS
- Special: Pan/Tilt movement blackout, User-selectable pan/tilt ranges, gravitation sensor for auto screen positioning
Work Environment
- Ambient Temp: -20 °C-45 °C
- IP Rated: IP65
Effect synthetic system
- Rotating Gobo: 7 Gobos+ White, Gobo-flow effect, Gobo shake, Bi-directional rotation
- Static Gobo: 8Gobos+White, Gobo-flow effect, Gobo shake
- Colors: One color wheel(6 dichroic -filters+ White, Rainbow-flow effect)
- CMYK: CMY wheel, Linear CTO function
- Prism: One piece of 5 F prisms with bi-directional rotation, Speed adjustable One piece of linear prism with bi-directional rotation, Speed adjustable
- Framing system: 4 shutter blade; Each blade’s angel and direction can be individual controlled, fully blackout; The whole Framing module is ±45°.
- Animation Wheel: Bi-directional rotation,Speed adjustfable
- Iris: 5-100% linearly adjustable with macro
- Focus: Motorized linear focus
- Zoom: Motorized linear Zoom
- Frost: 1 Frost filter
Appearance
- Size: 500x364x845mm
- Weight: 57kg
- Casing: Flame-retardant plastic (VO) Die-cast aluminum
- Color: Black
Certification
- CE, MET
